Overview:
Cleanroom FFU Ceiling Grid System incorporates Fan Filter Units (FFUs) into a modular grid structure, providing localized vertical laminar airflow. It enables flexible cleanroom classification control, energy-efficient air recirculation, and simplified filter maintenance. Widely used in semiconductor and biotechnology facilities, it ensures precise particle filtration and adaptable clean zone configurations.
Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
25
Introduction detail:
The FFU ceiling grid system has been developed on the basis of the advantages of the clean room ceiling system in various clean room areas in Europe and Asia. After nearly 20 years of continuous improvement, it has achieved the main function is to carry FFU today, and at the same time integrating it also integrates various professional system components of the integrated smallpox system.Once the listed,has been unanimously recognized by the Asian, European and American markets.

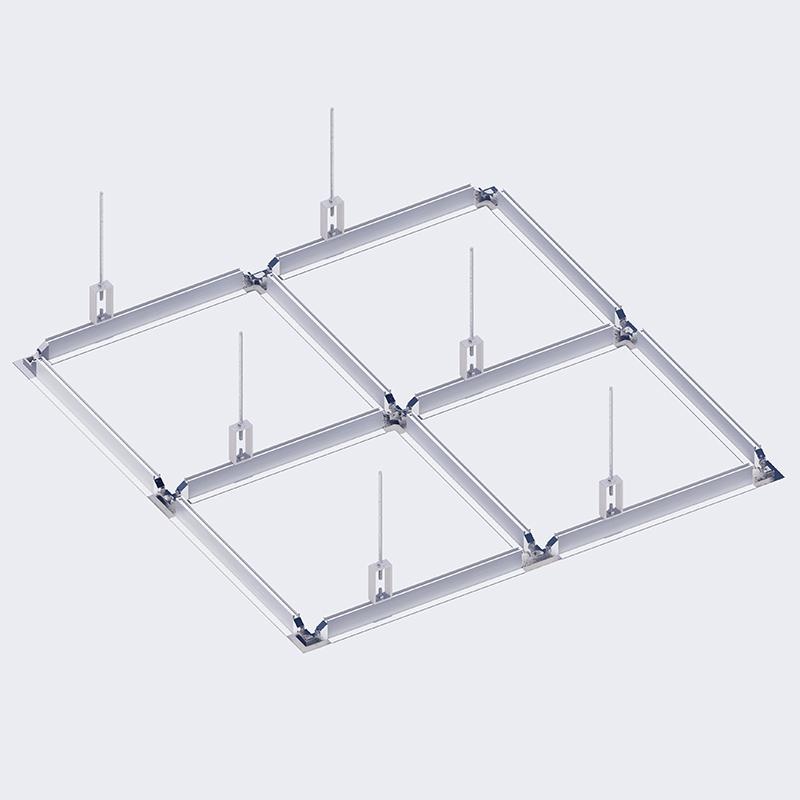

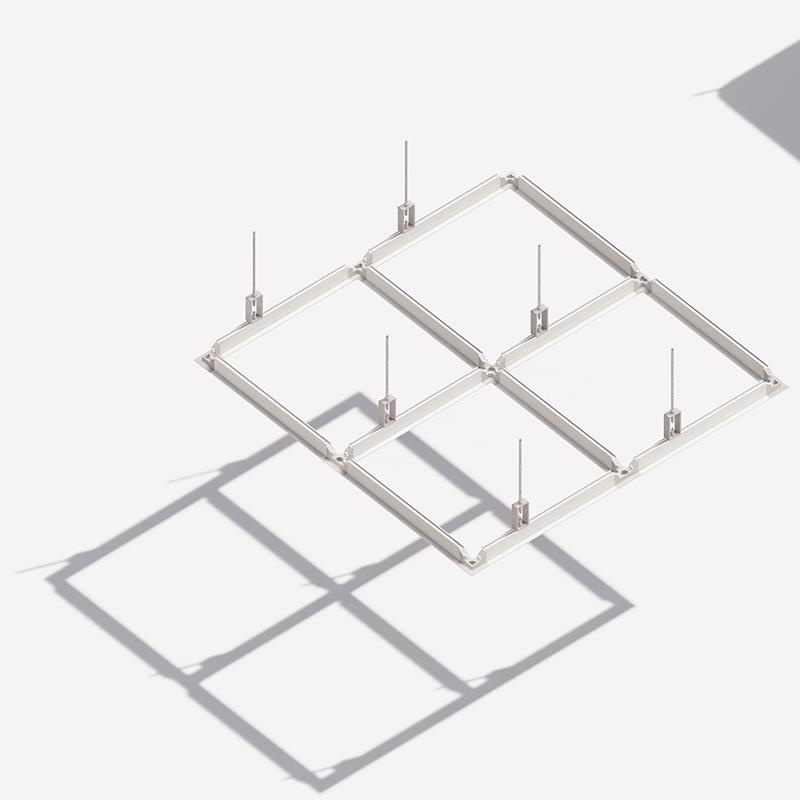

The drawing of clean room FFU ceiling grid：

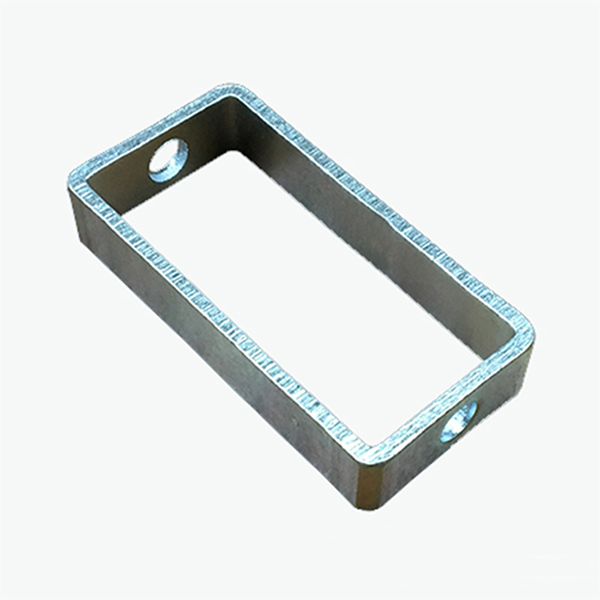

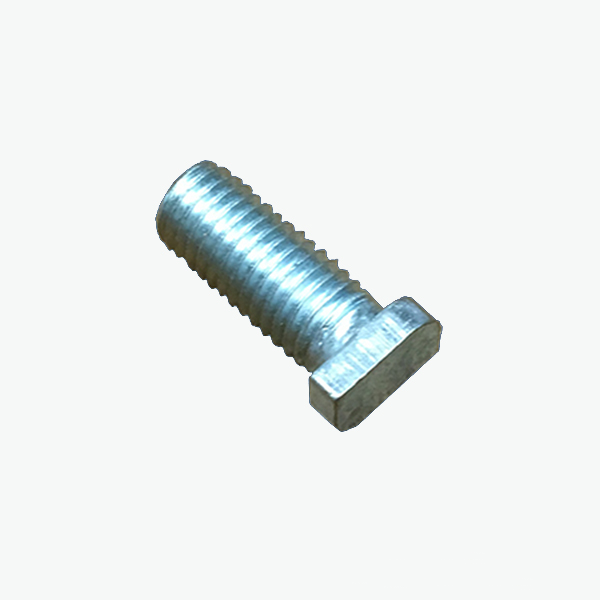

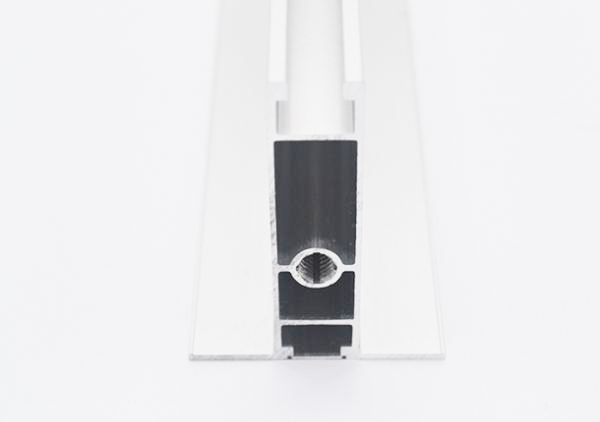

Clean room ceiling grid consisting of Ceiling grid, L joint，T joint，Cross joint，Hexagonal bolt, Adjuster, T bolt, Flange nut, Thread rod.
Detail picture:

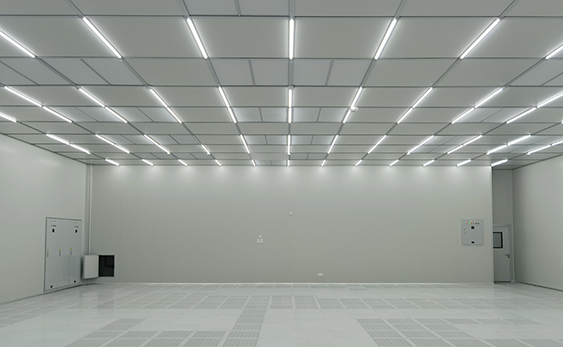

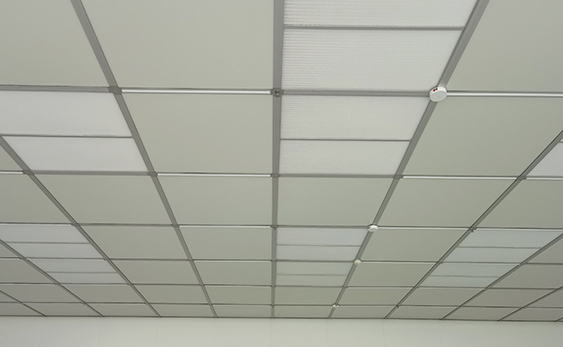

The project display :
Parameter:
|
Name |
Clean room FFU ceiling grid system |
|
Color |
Aluminum Colour, White: RAL 9002/9010 |
|
Material |
Aluminum |
|
Surface |
Anodized |
|
High |
55mm/70mm |
|
Length |
Customized |
|
Width |
55mm |
|
Usage |
Ceiling |
|
Application |
Cleanroom, Workshop, Factory |
|
Advantage |
Fire proof rate A |
|
Certification |
ISO9001:2008; SGS |
Products advantage:
1. Good supporting ability;
2. Can be stepping on;
3. High strength;
4. Easy to installation;
5. Easy to clean.
