The cleanroom demountable partition wall is an advanced, reusable modular wall system engineered to deliver ultimate layout flexibility for controlled environments. Featuring high-performance insulated panels (e.g., PIR, Rock Wool) and precision airtight seals, this system allows facilities to execute rapid cleanroom reconfiguration without the dust, debris, and downtime of traditional construction.
Perfectly suited for temporary structures, expandable facilities, pharmaceutical pilot labs, and dynamic R&D environments. It strictly supports ongoing ISO classification compliance while drastically reducing renovation timelines and long-term capital costs. Key operational advantages include:
Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
25

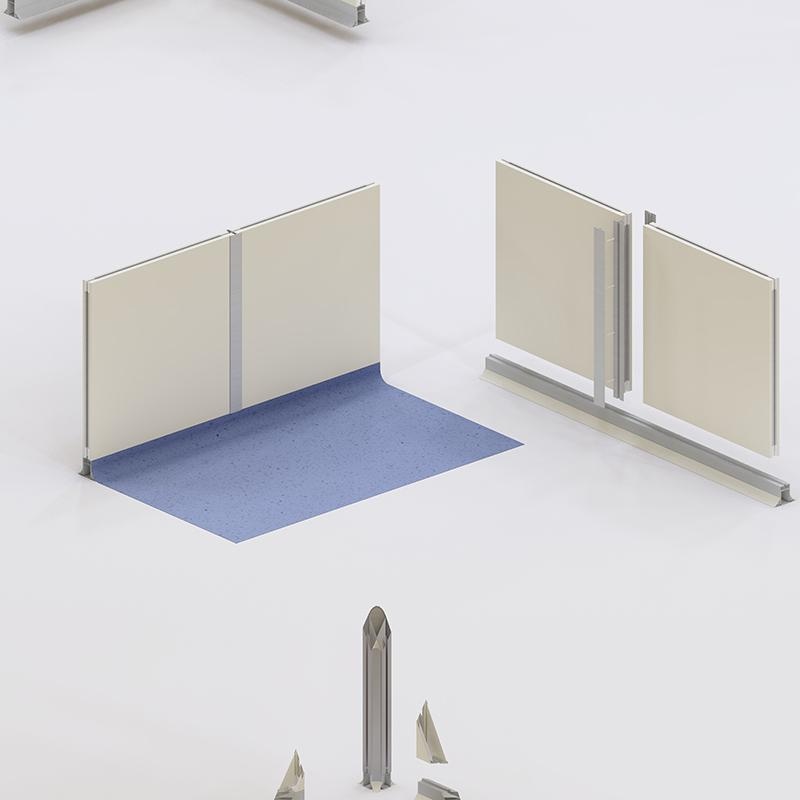

A cleanroom demountable partition wall is a reusable, modular wall system engineered for layout flexibility. Insulated panels — rock wool, PU or PIR core with airtight seals — are connected by front-and-rear clamped aluminum profiles fixed with screws. Because the connection is mechanical rather than built-in, the wall can be taken apart and rebuilt: rapid reconfiguration of cleanroom layouts without major construction, while still supporting ISO classification. It is commonly used in pharmaceutical pilot labs, R&D and electronics cleanrooms that change often. Compare with our fixed cleanroom partition system and the underlying sandwich panels.

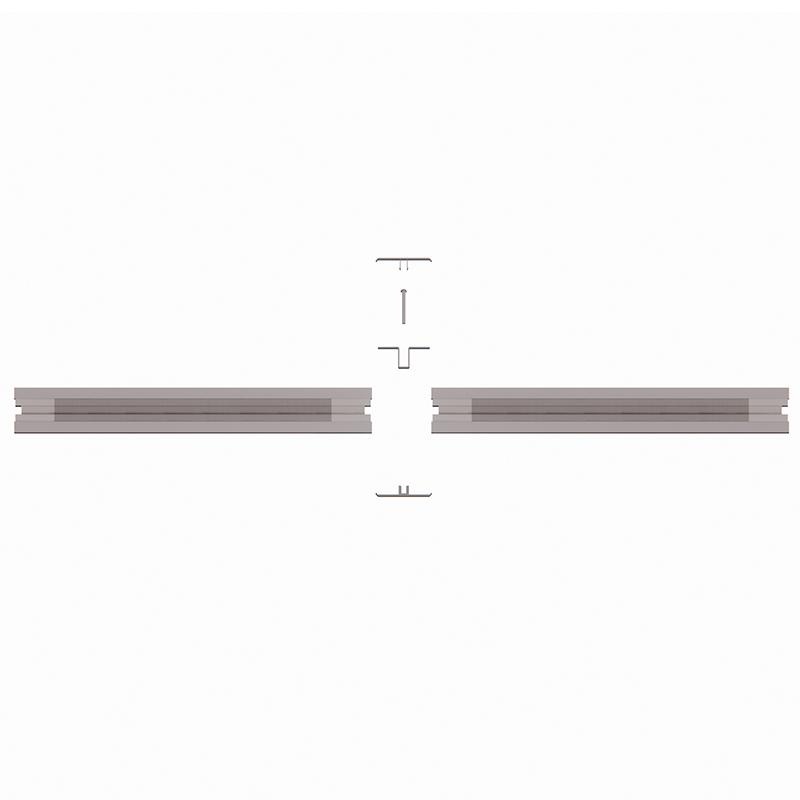

Panels are held by aluminum profiles clamped front and rear and fixed with screws. To remove a unit: take off the gusset plate, unscrew the profile, lift out the panel — then reinstall step-by-step in reverse order, and the gaskets and clamp force restore the original airtight seal.
| Feature | Wonclean Demountable Wall | Standard Fixed Partition |
|---|---|---|
| Equipment access | Rapid removal (gusset & screws) | Difficult — requires demolition |
| Flexibility | Reconfigure / relocate layout | Static layout |
| Reusability | 100% reinstallable | Material loss on removal |
| Installation | Fast, dry, clamped units | Moderate to long |
| Waste & disruption | Minimal — dry, reusable | High — demolition debris |
| Available thickness | 50 / 75 / 100 mm (other thicknesses customizable) |
| Panel core | Rock wool · PU · PIR (MGO / EPS available) |
| Facing | Pre-coated / galvanized steel, stainless steel or HPL |
| Base structure | Aluminum profile clamp & screw fix, removable gusset plates, airtight gaskets |
| Fire performance | Rock wool core non-combustible; rock wool partition tested to GB/T 9978 |
| Main application | Pharmaceutical, electronics & laboratory cleanrooms |
No. The system uses a clamped aluminum-profile structure with gusset plates. When reinstalled in reverse order, the gaskets and clamp force restore the original airtight seal.
With the screw-fixed clamp design, a standard panel unit can usually be removed in minutes by unscrewing the connections — far faster than demolishing a built-in wall.
Yes. Because the panels and profiles are mechanically connected, the wall is fully reinstallable — you can reconfigure a layout or relocate the cleanroom and reuse the same components, with minimal waste.
Rock wool for fire resistance, or PU / PIR for superior thermal insulation (MGO and EPS also available). Standard thicknesses are 50, 75 and 100 mm, with other sizes made to order.
With a rock wool core the partition is non-combustible. Our metal-faced rock wool partition has passed GB/T 9978 fire-resistance type testing at an accredited national centre — the report is available on request.
Yes. It is built to integrate with Wonclean modular cleanroom walls, doors and vision windows, and service/injection panels, so the demountable sections blend seamlessly into the rest of the cleanroom.
Tell us your layout, core material, thickness and where equipment access is needed. Our engineers recommend the demountable build and send a competitive factory-direct price. Typical reply within 24 hours.
