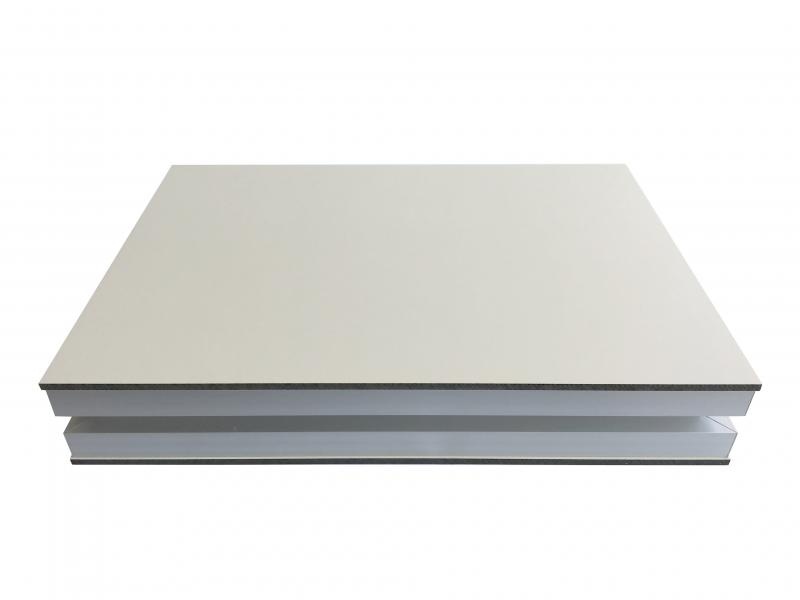

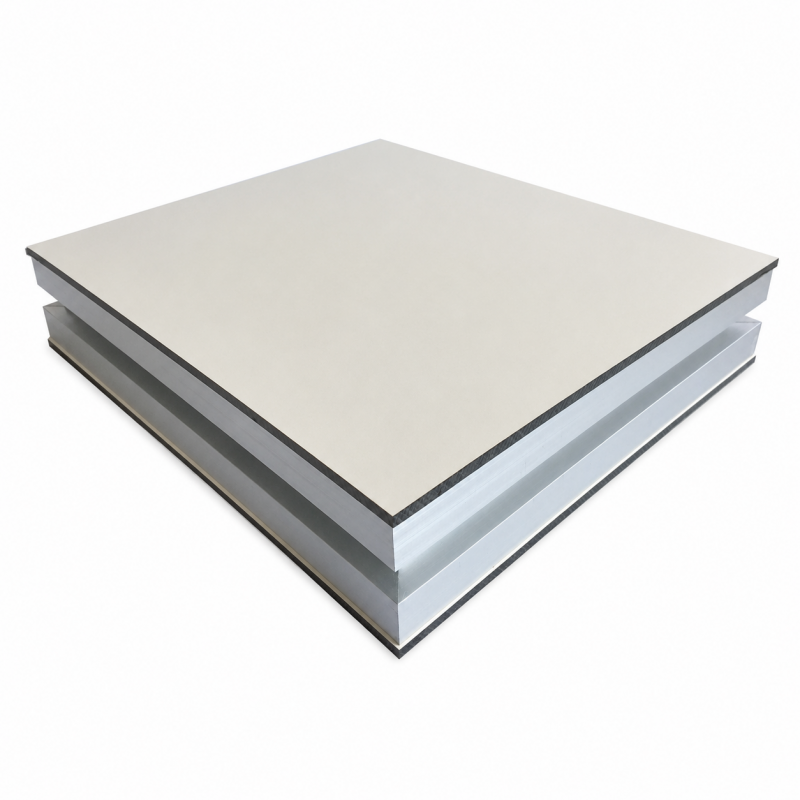

The HPL sandwich panel is a premium architectural solution engineered by bonding a highly durable high-pressure laminate (HPL) surface layer to a customizable insulated core (such as PIR or Rock Wool). Designed specifically for demanding cleanroom and industrial applications, these high-pressure laminate cleanroom panels deliver an unparalleled combination of structural integrity and aesthetic versatility.
Renowned for their robust physical properties, these panels provide the ultimate defense against mechanical impacts and harsh chemical agents. They are widely specified for laboratories, hospitals, pharmaceutical cleanrooms, and food processing facilities requiring strict environmental control. Key operational advantages include:
Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
25

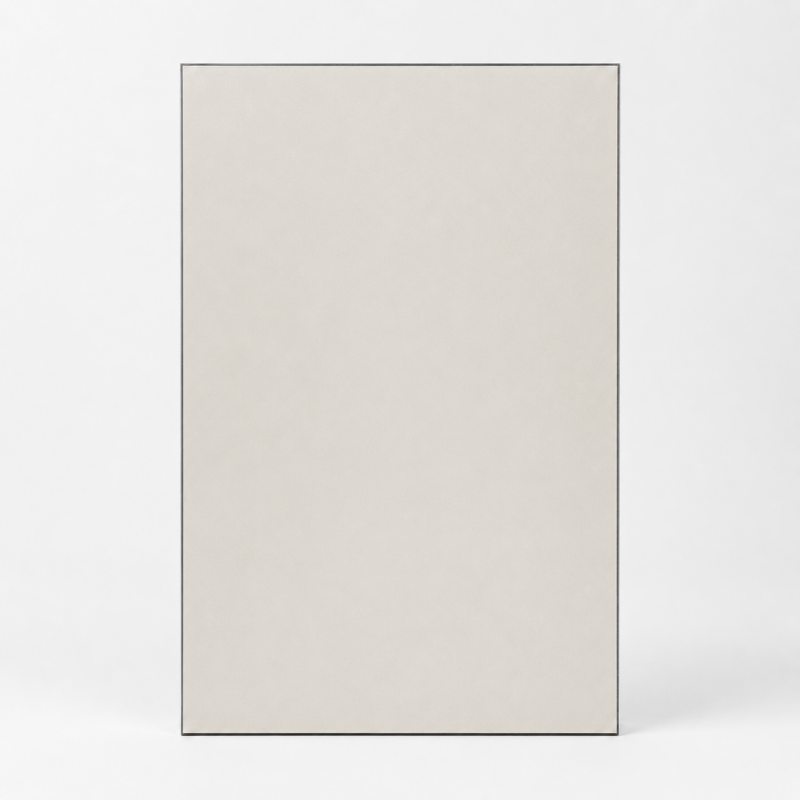

HPL — high-pressure laminate, also called melamine resin panel — is 4 mm thick and built from more than 40 layers of paper impregnated with melamine and phenolic resin, cured under high heat and pressure into one dense, solid sheet. As a panel facing it delivers excellent fire resistance and thermal insulation, plus corrosion resistance, impact resistance, a good decorative surface and availability in multiple colors. The HPL sandwich panel bonds this laminate to an insulated core, giving a hygienic, low-maintenance wall or ceiling. The same material is used for our HPL cleanroom door and HPL ceiling system.

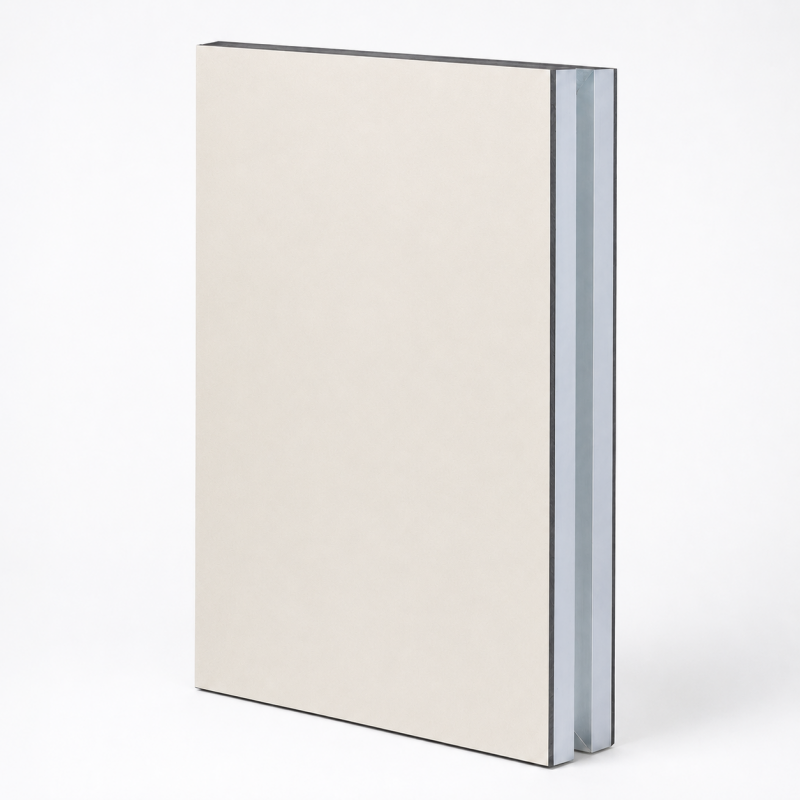

The 4 mm HPL face is then bonded to an insulated core (PIR, rock wool or honeycomb) to form the finished sandwich panel.
HPL is available in a wide range of colors and wood-grain finishes. Popular cleanroom shades include:
Swatch colors are indicative on screen. Request a physical color card for exact shades — more colors and custom finishes are available on request.
| Aspect | HPL facing | Metal (steel) facing |
|---|---|---|
| Surface look | Decorative, many colors & wood grains | Industrial, limited colors |
| Chemical resistance | Excellent | Depends on coating |
| Scratch & impact | High resistance | Can dent / show marks |
| Hygiene / cleaning | Non-porous, easy disinfect | Easy to clean |
| Best suited to | Labs · hospitals · food · medical | General industrial cleanrooms |
Behind the HPL face you can choose an insulated core: PIR, rock wool or aluminum honeycomb. Prefer a metal-faced option? See the cleanroom sandwich panel range, or the dedicated HPL cleanroom panel and medical cleanroom panel.
HPL (high-pressure laminate / melamine resin panel) is 4 mm thick and made from more than 40 layers of paper impregnated with melamine and phenolic resin, cured under high heat and pressure into one solid, durable sheet.
Yes. HPL offers excellent fire resistance along with thermal insulation. For projects with strict fire codes we can pair the HPL face with a non-combustible rock wool or MGO core.
The melamine overlay gives strong corrosion, chemical, scratch and impact resistance, and the non-porous surface is easy to disinfect — well suited to labs, hospitals and food facilities.
HPL comes in multiple colors and wood grains — popular cleanroom shades include swan white, snow white, coconut white, ivory, soft pink, sea green and light blue. Request a color card for exact shades; custom colors are available.
Choose HPL when you want a decorative, color-rich, highly chemical- and scratch-resistant, easy-to-disinfect surface — typical in labs, hospitals and medical or food environments. Metal facings suit general industrial cleanrooms.
Yes. The same HPL is used for our HPL ceiling system and HPL door, so walls, ceilings and doors can share one consistent finish.
Tell us your color, core material, panel sizes and project. Our engineers send a competitive factory-direct price and a free sample or color card on request. Typical reply within 24 hours.
