A Rockwool Cleanroom Panel bonds two corrosion-resistant color-steel facings to a high-density rock wool core — an A-grade fireproof, sound-insulating cleanroom wall and ceiling panel made to a ≤ 2 mm/2 m flatness tolerance. Key advantages:

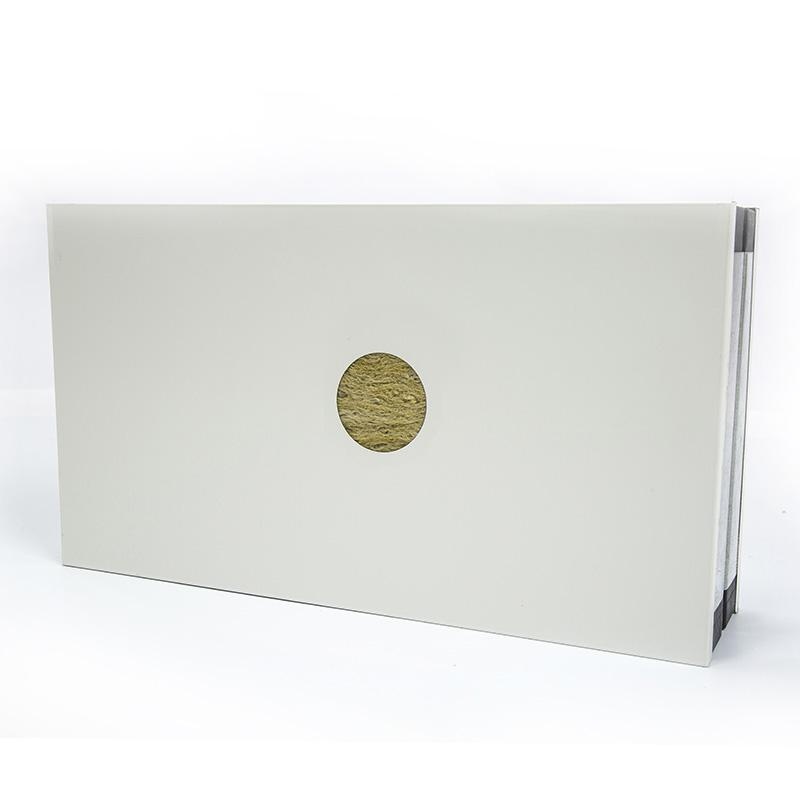

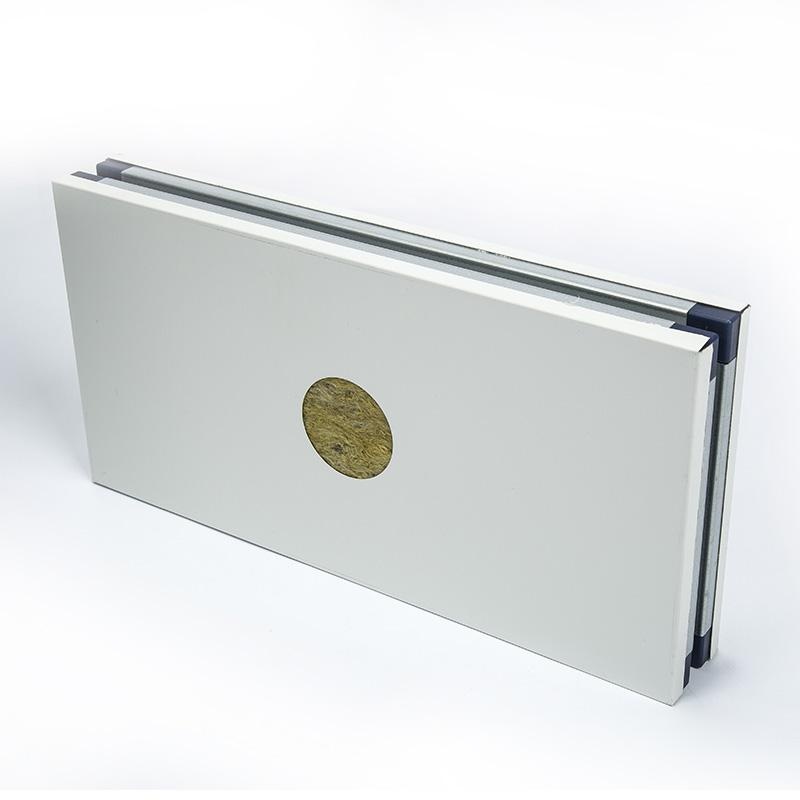

A rockwool cleanroom panel is a metal sandwich panel formed by bonding two color-coated steel sheets to a high-density mineral rock wool core. The steel skins give a hard, wipe-clean, anti-static surface with strong corrosion resistance, while the rock wool core delivers A-grade non-combustible fire protection plus thermal and acoustic insulation. It is the standard, cost-effective board for cleanroom walls and ceilings that need reliable fire performance without sacrificing strength.
The facing uses top-brand pre-painted steel with a controlled coating thickness, so the panel resists dust accumulation, dust generation and surface corrosion — meeting the hygiene demands of a controlled environment. Where a project needs an all-inorganic, mould-proof facing for fire compartments or wet wash-down areas, the magnesium oxide rock wool panel is the alternative; for maximum thermal insulation, see our PIR and EPS cores.
Part of Wonclean's cleanroom sandwich panel family, the rock wool panel pairs with matching ceiling systems and cleanroom doors and windows for a fully sealed, flush-finish cleanroom wall system.
| Panel thickness | 50 mm standard; 75 / 100 mm and other thicknesses fully customizable |
| Effective width | 1150 mm standard (1180 mm overall); 980 mm optional |
| Panel length | Cut-to-size, typically up to 6000 mm per panel; longer on request |
| Facing (steel) | Top-brand pre-painted / galvanized steel 0.4–0.6 mm; stainless steel & embossed options |
| Core | Rock wool, density 100 / 120 / 128 kg/m³; vertical-fiber option for higher strength |
| Fire rating | Core A-grade non-combustible; fire resistance up to 1–2 h by thickness |
| Thermal conductivity | Core ≈ 0.040 W/(m·K) |
| Sound reduction | Rw ≈ 30–35 dB depending on thickness & density |
| Flatness tolerance | ≤ 2 mm / 2 m for tight, gap-minimised joints |

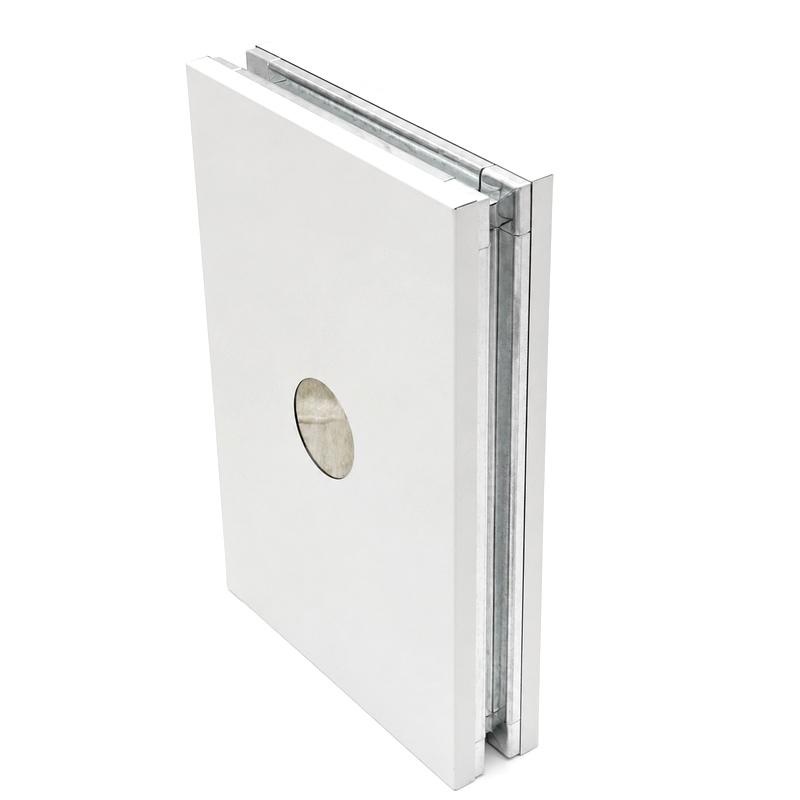

| Joint system | Handmade or machine-made; tongue-and-groove, cam-lock or aluminium H / C connectors |
| Standards / lead time | EN 13501-1 · ASTM E84 · BS 476 · ISO 9001 · CE · China / Shanghai · ~10–25 days |
Standard configurations shown; all dimensions, steel gauge, core density, color and certificates are tailored per project — request the full datasheet & test reports.
| Facing | Key property | Best for |
|---|---|---|
| Pre-painted color steel | Economical, RAL colors, anti-static | General cleanroom walls & ceilings |
| Galvanized / GI steel | Zinc-coated, structural strength | Back walls, structural runs |
| Stainless steel 304 | Superior corrosion resistance | Pharma, sterile & wet areas |
| All-inorganic MgO facing | A1 facing, mould-proof — see MgO panel | Fire compartments, wash-down |
Panels are produced on a high-precision automated line using top-brand color-coated steel with a controlled coating thickness for corrosion resistance. Tight tolerances (flatness ≤ 2 mm/2 m) mean gap-minimised joints, and we offer multiple cores and certified fire ratings so the panel matches your exact specification.
The rock wool core is A-grade non-combustible, with fire resistance up to 1–2 hours depending on thickness. We provide third-party fire test reports and certificates to EN 13501-1, ASTM E84 and BS 476, plus ISO 9001 and CE, on request.
Rock wool boards carry internal reinforcement to resist sagging and are made to ≤ 2 mm/2 m flatness. For export they are stacked flat, film-wrapped with corner protectors and crated in plywood boxes for long-haul sea freight, with clear unloading and handling guidance.
A single project is produced from the same steel coil batch. For large multi-batch orders we coordinate with the mill to match color, and any unavoidable variation can be zoned by room or area so it is not noticeable. RAL and custom colors are available.
Rock wool gives the best balance of A-grade fire safety, acoustics and value for general cleanroom walls. Choose the MgO rock wool panel for an all-inorganic, mould-proof facing, or PIR / EPS when thermal insulation or budget is the priority.
Sample/small orders typically ship in 10–15 days and a full container in about 20–25 days from Shanghai. Steel gauge, color, thickness and certificates are made to order — send your panel schedule and we will confirm exact MOQ, lead time and FOB/CIF/DDP pricing.
Send us your thickness, steel facing, color, fire rating, ISO/GMP class and panel quantity. Our engineers return a panel schedule, test reports and a factory-direct quotation — typically within 24 hours.
