The clean room partition system is an integrated, modular wall solution engineered for high-efficiency industrial cleanroom workshops. By utilizing standardized panels, sealing profiles, and robust structural supports, this system delivers an airtight, thermally insulated barrier designed to maintain strict ISO Class 5–8 cleanliness levels.
Its defining architectural feature is the 90° right-angle connection, which provides a simplified, exceptionally solid, and highly economical method for constructing airtight controlled environments. Perfectly suited for electronics, semiconductor, and mechanical component manufacturing. Key operational advantages include:
Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
25
It is an integrated modular system made of standardized sandwich panels, sealing profiles and structural supports that together create certified cleanroom spaces with airtight barriers, smooth cleanable surfaces and thermal insulation. The right-angle 90° connection makes installation fast, solid and economical, and the system supports different cleanliness levels (ISO Class 5–8) for flexible space design. It is the cost-effective choice for large-scale industrial workshops; for rounded hygienic corners see the medical cleanroom panel, and for frequent layout changes the demountable partition wall.

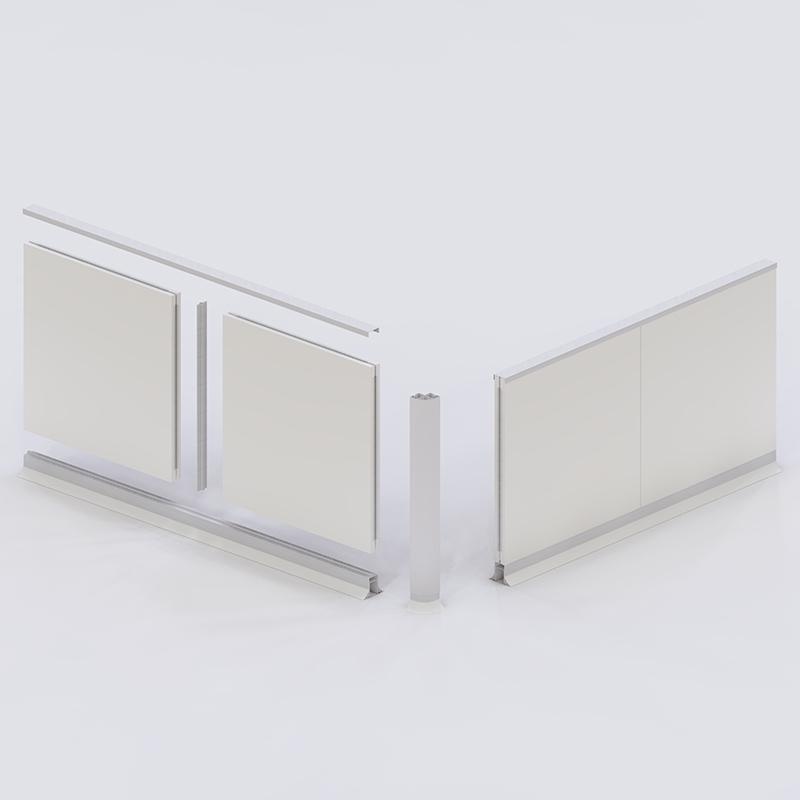

Ceiling-to-partition, partition-to-floor and partition corners are all joined at a simple 90° angle — a direct, solid alignment that is quick to install and low cost, while sealing profiles keep the wall airtight.
| Feature | Right-Angle Partition | High-Cleanliness Coved System |
|---|---|---|
| Installation | Very simple (direct alignment) | Complex (radius profiles) |
| Initial cost | Low / economical | Premium |
| Structural stability | Solid & firm | High |
| Best use case | Industrial workshops / electronics | Pharmaceutical / medical labs |
| Available thickness | 50 / 75 / 100 mm (other thicknesses customizable) |
| Core options | Rock wool · PU · PIR (MGO / EPS available) |
| Facing | Pre-coated / galvanized steel, stainless steel or HPL |
| Connection | Right-angle 90° profiles with sealing for airtight joints |
| Fire performance | Rock wool core non-combustible; rock wool partition tested to GB/T 9978 |
| Main application | Industrial cleanroom workshops (electronics, semiconductor, mechanical) |
Planning a large biotech or industrial line? See our briefing: Prefabricated Modular Laboratory Infrastructure Shipments Surge (2026).
These workshops usually have large floor areas where installation speed and cost matter most. The right-angle system is solid, quick to install and economical, while still meeting their standard cleanliness requirements.
Yes. Choose a non-combustible rock wool core, or PIR for a balance of fire performance and thermal insulation, based on your engineering needs.
Right-angle is the economical, fast choice for industrial workshops with standard cleanliness. For pharmaceutical or medical rooms that need rounded, dust-free corners, choose our coved medical panel system.
Yes. Like all Wonclean modular systems, the partitions integrate with our ceiling and flooring systems for a seamless industrial fit-out.
Standard thicknesses are 50, 75 and 100 mm (others customizable), and the system can be configured for ISO Class 5–8 depending on the panels, sealing and HVAC design.
Tell us your workshop area, cleanliness level, core material and thickness. Our engineers recommend the right-angle build and send a competitive factory-direct price. Typical reply within 24 hours.
