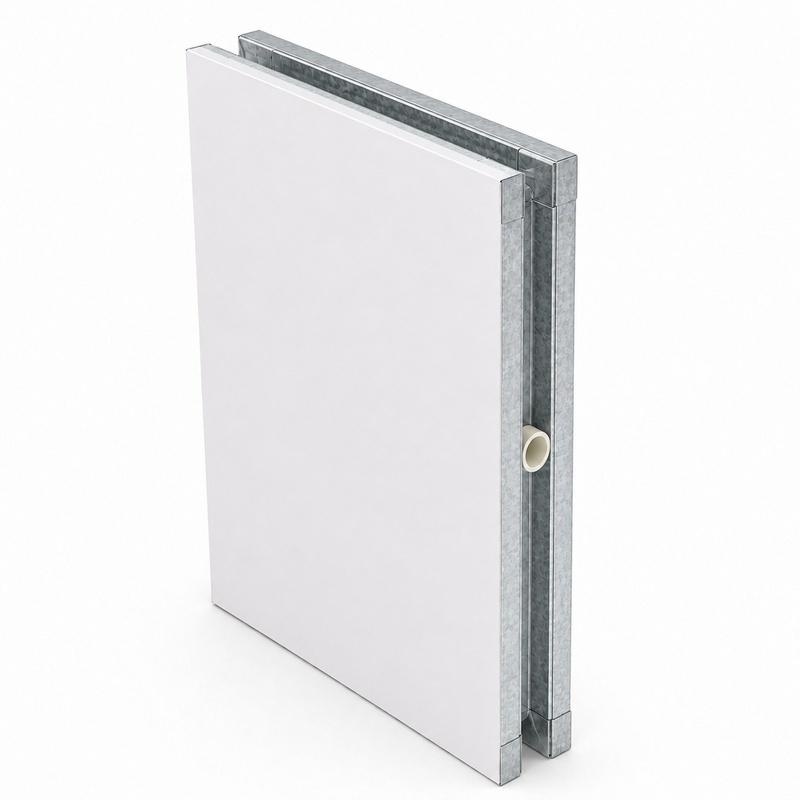

A Duct Cleanroom Panel is a pre-insulated board for fabricating clean HVAC air ducts — a smooth metal facing over a rigid insulation core, with a galvanized perimeter for flanged jointing, made to a ≤ 2 mm/2 m flatness tolerance. Key advantages:

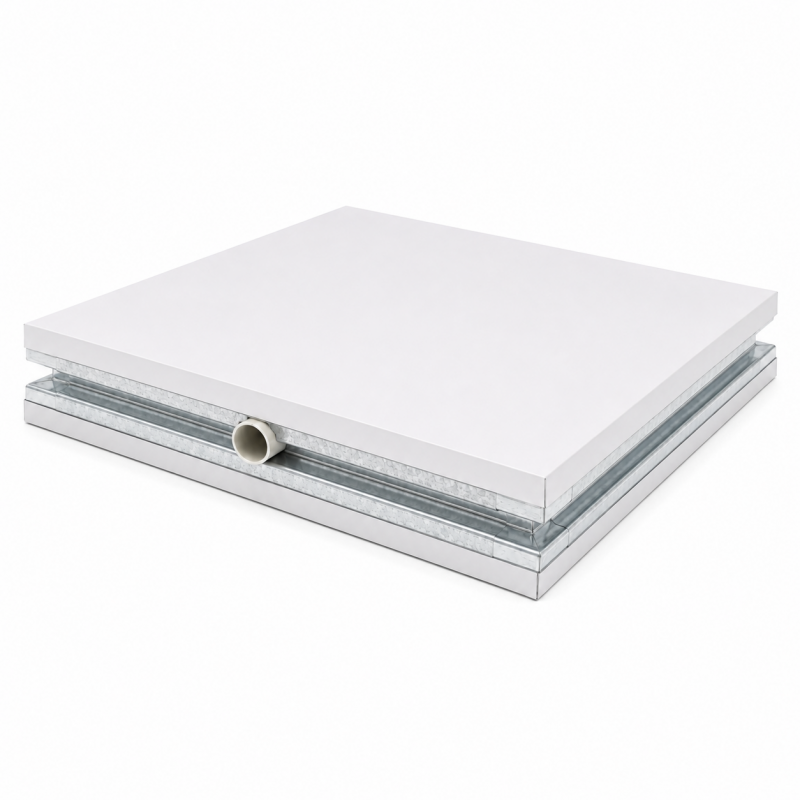

A duct cleanroom panel is a pre-insulated sandwich board used to build HVAC air ducts for controlled environments. Instead of separate galvanized sheet metal plus add-on lagging, the panel combines a smooth, dust-free inner facing, a rigid insulation core and a galvanized perimeter in one board — cut, folded and joined into supply, return and exhaust ductwork. The result is an airtight, insulated, condensation-free duct with a clean internal airway.
Because the insulation is built in, there is no exposed fibre to shed into the airstream, and the smooth facing resists dust accumulation and is easy to wipe clean — important for the air feeding an FFU ceiling system and the rooms behind your cleanroom wall system. Core options let you tune insulation and fire performance to the project.
Part of Wonclean's cleanroom sandwich panel range, the duct panel complements our insulated wall and ceiling panels — such as the PU and PIR panels — for a complete cleanroom envelope and air-distribution package.
| Panel thickness | 25 / 50 mm standard; other thicknesses fully customizable |
| Panel size | Large boards cut to the duct size required; custom on request |
| Facing | Smooth coated steel or aluminium; clean, low-friction inner surface |
| Core | Rigid PU / PIR insulation foam, closed-cell |
| Framing / jointing | Galvanized steel perimeter; flanged, sealed airtight joints |
| Thermal conductivity | Core λ ≈ 0.022–0.023 W/(m·K); anti-condensation |
| Fire rating | Class B1 (PIR core); A-grade mineral-core option available |
| Air leakage / interior | Low-leakage sealed joints; smooth, dust-free, no fibre shedding |
| Flatness tolerance | ≤ 2 mm / 2 m for tight, gap-minimised joints |
| Standards / lead time | EN 13501-1 · ISO 9001 · CE · China / Shanghai · ~10–25 days |
Standard configurations shown; core, thickness, facing and certificates are tailored per project — request the full datasheet & test reports.
| Feature | Wonclean Panel Duct | Traditional GI Sheet Duct |
|---|---|---|
| Insulation | Built in — no separate lagging | Add-on external insulation needed |
| Condensation | Resisted by the core | Risk on bare metal in cold runs |
| Weight & speed | Light, fast to cut & assemble | Heavier, more support & labour |
| Interior cleanliness | Smooth, dust-free, no fibre | Seams; lining can shed fibre |
The insulation is built into the panel, so there is no separate external lagging, no condensation on cold-air runs and no exposed fibre in the airstream. It is much lighter than sheet metal, faster to cut and assemble, and gives a smooth, sealed, low-leakage interior — ideal for cleanroom air distribution.
Yes. The rigid closed-cell core (λ ≈ 0.022–0.023 W/m·K) insulates the duct and keeps the outer surface above dew point, preventing condensation, with sealed joints maintaining the vapour barrier along the run.
A PIR core reaches Class B1; for projects that require non-combustible ductwork we offer an A-grade mineral-core option. Third-party reports to EN 13501-1, plus ISO 9001 and CE, are available on request.
The inner facing is smooth and dust-free with no exposed fibre, so it does not contaminate the airstream and wipes clean. Galvanized framing and sealed flanged joints keep air leakage low, helping maintain stable cleanroom pressure and airflow.
Panels come in large boards cut to the duct cross-sections you need, in 25 / 50 mm standard or custom thickness, with PU or PIR core. Send your duct schedule and airflow and we will recommend thickness, core and framing.
Sample/small orders typically ship in 10–15 days and a full container in about 20–25 days from Shanghai. Core, thickness and certificates are made to order — send your duct schedule and we will confirm exact MOQ, lead time and FOB/CIF/DDP pricing.
Send us your duct sizes, core, thickness, fire class and airflow. Our engineers return a panel schedule, test reports and a factory-direct quotation — typically within 24 hours.
