A PU Cleanroom Panel bonds two coated-steel facings to a rigid polyurethane (PU) foam core — a high-insulation, airtight cleanroom wall and ceiling panel made to a ≤ 2 mm/2 m flatness tolerance. Key advantages:

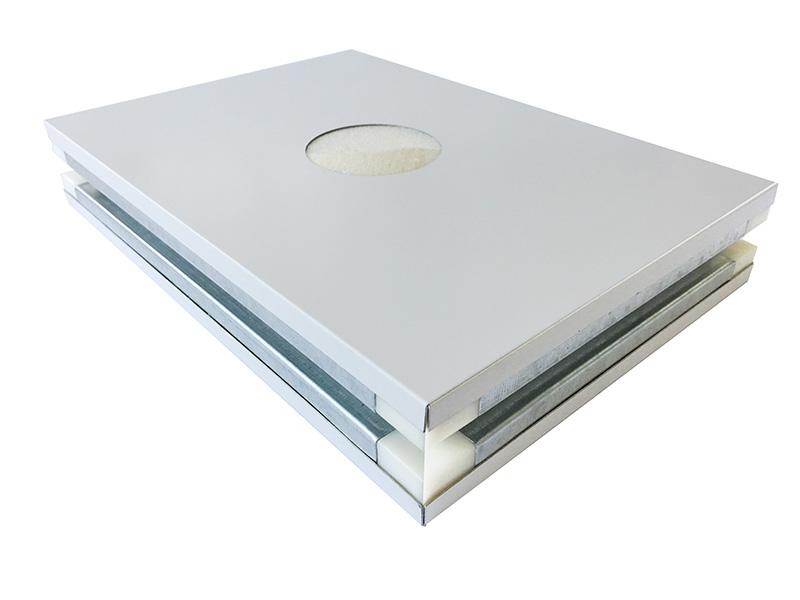

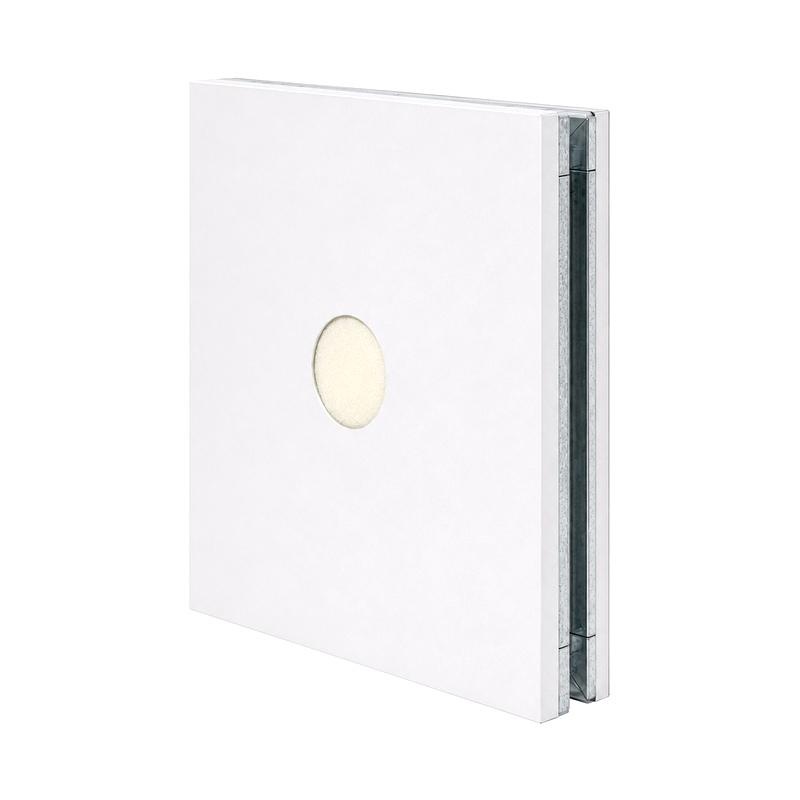

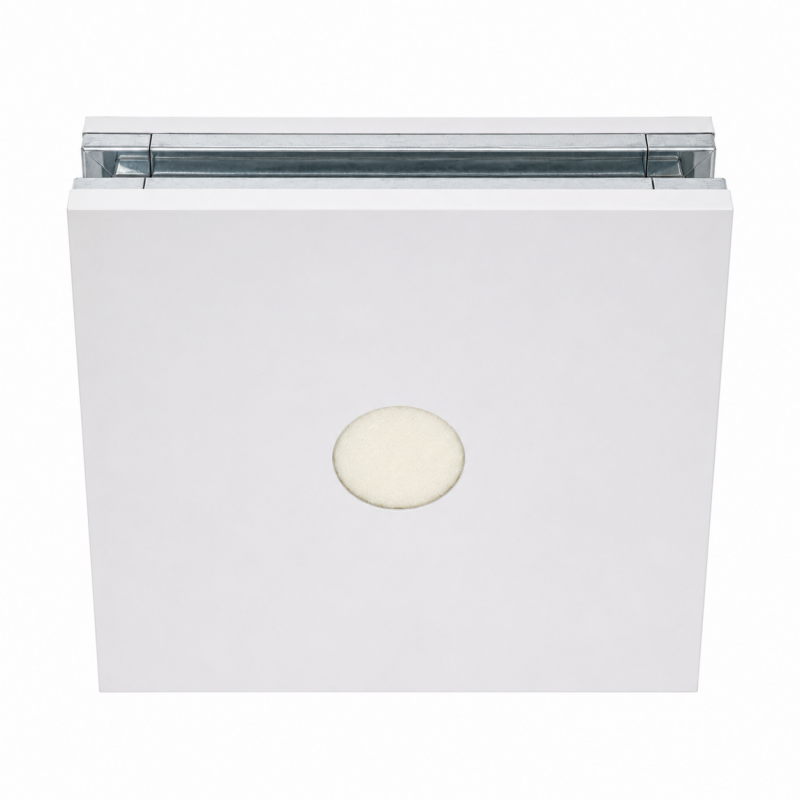

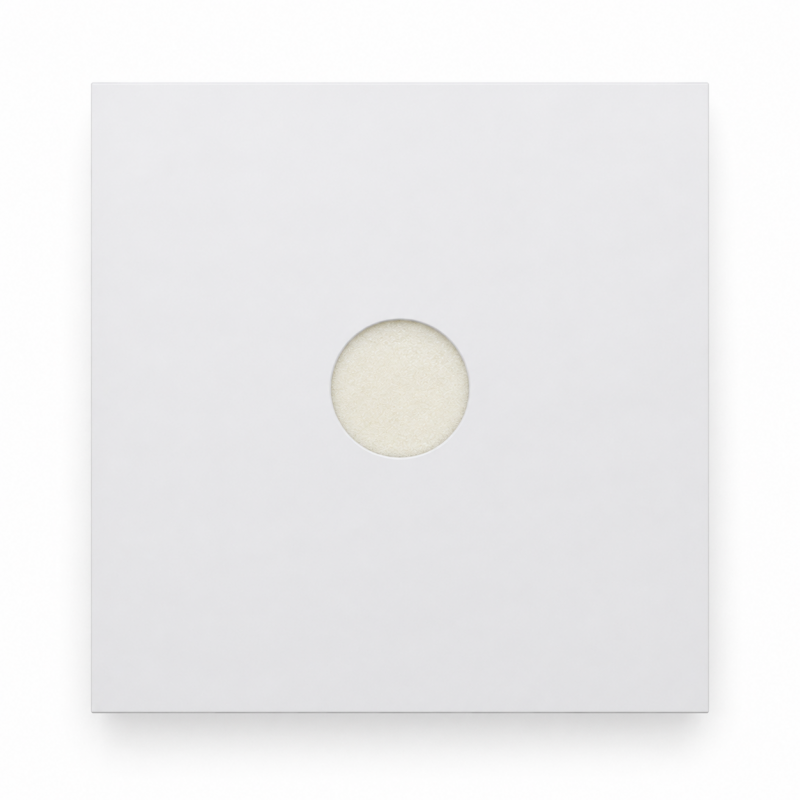

A PU cleanroom panel is a metal sandwich panel made by foaming or bonding a rigid polyurethane (PU / PUR) core between two color-coated steel facings. The closed-cell foam gives the lowest thermal conductivity of any cleanroom core, plus an airtight seal, low weight and a strong bond to the steel skins. The facings provide an anti-static, wipe-clean, corrosion-resistant surface, making the panel the first choice for temperature- and humidity-controlled rooms.
PU offers outstanding insulation but a fire classification of B1/B2 rather than A-grade, so it is specified where thermal performance and sealing lead the requirement — cold rooms, cold-chain and controlled environments. Where a higher fire rating is required, the PIR panel (B1) keeps similar insulation, while the rock wool and MgO rock wool panels are A-grade non-combustible.
Part of Wonclean's cleanroom sandwich panel family, the PU panel pairs with matching ceiling systems and cleanroom doors and windows for a fully sealed, flush cleanroom wall system.
| Panel thickness | 50 mm standard; 75 / 100 mm and other thicknesses fully customizable |
| Effective width | 1150 mm standard (1180 mm overall); 980 mm optional |
| Panel length | Cut-to-size, typically up to 6000 mm per panel; longer on request |
| Facing (steel) | Top-brand pre-painted / galvanized steel 0.4–0.6 mm; stainless steel option |
| Core | Rigid polyurethane (PU/PUR) closed-cell foam, density 38–45 kg/m³ |
| Thermal conductivity | λ ≈ 0.022–0.024 W/(m·K) — best in range |
| Fire rating | Fire class B1 / B2 by formulation; for A-grade choose rock wool / MgO |
| Weight | Lightweight ≈ 11–14 kg/m² depending on facing & thickness |
| Flatness tolerance | ≤ 2 mm / 2 m for tight, gap-minimised joints |
| Joint system | Tongue-and-groove, cam-lock or aluminium H / C connectors |
| Standards / lead time | EN 13501-1 · ASTM E84 · BS 476 · ISO 9001 · CE · China / Shanghai · ~10–25 days |
Standard configurations shown; all dimensions, steel gauge, core density, color and certificates are tailored per project — request the full datasheet & test reports.
Choose PU when thermal insulation and sealing are the top priority — cold rooms, cold-chain and controlled-temperature areas — as it has the lowest thermal conductivity. If you need a higher fire rating with similar insulation, the PIR panel (B1) is better; for A-grade non-combustible walls choose rock wool.
The PU core is fire class B1 or B2 depending on formulation — flame-retardant grades are available. We supply third-party test reports to EN 13501-1, ASTM E84 and BS 476, plus ISO 9001 and CE. Where regulations demand A-grade, we recommend a rock wool or MgO core instead.
PU offers the lowest thermal conductivity in our range, around λ ≈ 0.022 W/(m·K). That means thinner panels achieve the same insulation as thicker mineral cores, saving space and reducing the energy cost of keeping a room cold or at a stable temperature.
The closed-cell PU core acts as a moisture and vapour barrier, and tongue-and-groove or cam-lock joints seal each junction. Correctly installed with sealed joints and a continuous vapour barrier, the system controls condensation in chilled and humidity-controlled spaces.
Standard is top-brand pre-painted steel (stainless available) in RAL or custom colors, made to ≤ 2 mm/2 m flatness. A single project uses the same steel coil batch for color consistency; large multi-batch orders are color-matched with the mill or zoned by area.
Sample/small orders typically ship in 10–15 days and a full container in about 20–25 days from Shanghai. Steel gauge, color, thickness and certificates are made to order — send your panel schedule and we will confirm exact MOQ, lead time and FOB/CIF/DDP pricing.
Send us your thickness, steel facing, color, target temperature, fire class and panel quantity. Our engineers return a panel schedule, test reports and a factory-direct quotation — typically within 24 hours.
