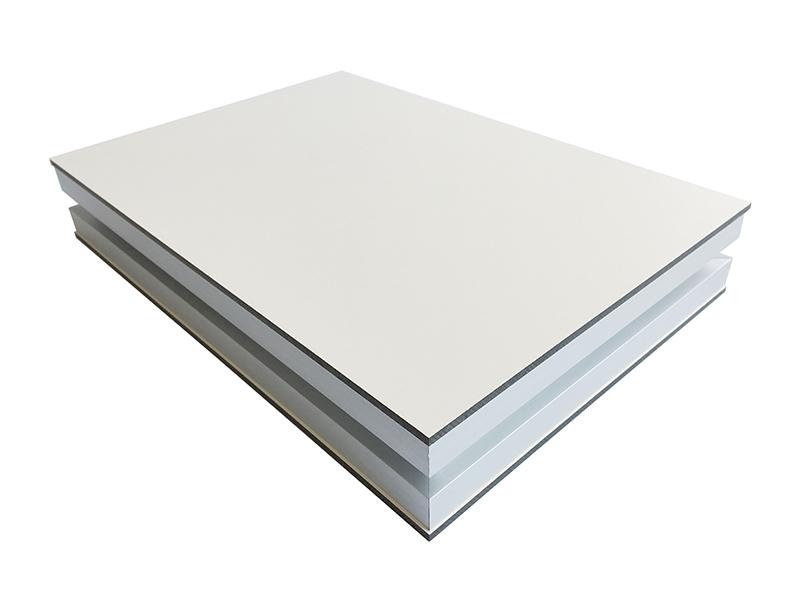

An HPL Cleanroom Panel bonds two high-pressure laminate (HPL) facings to a configurable core (honeycomb, MgO or rock wool) — a chemical-resistant, decorative cleanroom wall and ceiling panel made to a ≤ 2 mm/2 m flatness tolerance. Key advantages:
An HPL cleanroom panel is a sandwich panel finished with High-Pressure Laminate (HPL) — a dense board of 40+ kraft-paper layers impregnated with melamine and phenolic resin, cured under heat and pressure. This surface is bonded to a configurable core (aluminum honeycomb, MgO or rock wool), giving a wall and ceiling panel whose defining strength is its facing: resistant to chemicals, scratching and impact, and stable in color because the decor runs through the laminate.
Unlike a painted steel skin, an HPL surface withstands frequent disinfection with alcohol, hydrogen peroxide and bleach without fading, peeling or rusting — the reason it is specified for pharmaceutical and laboratory rooms. Choose the core to match fire and structural needs: an aluminum honeycomb core for a light, ultra-flat board, or a rock wool / MgO core for A-grade fire performance.
Part of Wonclean's cleanroom sandwich panel family, the HPL panel matches our HPL cleanroom doors, ceiling systems and windows for a fully sealed, flush cleanroom wall system.
| Panel thickness | 50 mm standard; 75 / 100 mm and other thicknesses fully customizable |
| Effective width | 1150 mm standard (1180 mm overall); 980 mm optional |
| Panel length | Cut-to-size, typically up to 6000 mm per panel; longer on request |
| Facing (HPL) | Double-sided HPL, 0.8–4 mm; 40+ kraft layers with melamine/phenolic resin |
| Core options | Aluminum honeycomb, MgO or rock wool — selectable by fire/strength need |
| Surface properties | Chemical-, scratch- & impact-resistant; anti-static; color-through, fade-resistant |
| Fire rating | By core: A-grade with mineral/honeycomb core; fire-rated HPL available |
| Colors & finish | Wide color range incl. wood grain; matt or satin; custom decor on request |
| Flatness tolerance | ≤ 2 mm / 2 m for tight, gap-minimised joints |
| Joint system | Tongue-and-groove, cam-lock or aluminium H / C connectors |
| Standards / lead time | EN 438 · EN 13501-1 · ISO 9001 · CE · China / Shanghai · ~10–25 days |
Standard configurations shown; all dimensions, core, color, finish and certificates are tailored per project — request the full datasheet & color chart.
| Feature | HPL Panel | Coated-Steel Panel |
|---|---|---|
| Chemical / disinfectant | Excellent — resists alcohol, H₂O₂, bleach | Good; coating can degrade over time |
| Scratch / impact | Very hard, abrasion-resistant | Paint can scratch and chip |
| Corrosion | Never rusts | Can rust if coating is broken |
| Color & decor | Color-through, wood grains, fade-resistant | Surface paint colors |
HPL resists frequent chemical disinfection (alcohol, hydrogen peroxide, bleach), is hard against scratches and trolley/equipment impact, never rusts even in humid rooms, and keeps a stable color because the decor runs through the laminate. It also offers many colors and wood-grain finishes that painted steel cannot.
The HPL facing can be bonded to an aluminum honeycomb core for a light, ultra-flat board, or to a rock wool / MgO core for A-grade fire performance. We recommend the core based on your fire, weight and structural requirements.
Fire performance is driven by the core: with a rock wool, MgO or aluminum honeycomb core the panel reaches A-grade, and fire-rated HPL grades are available. We provide third-party test reports to EN 438 and EN 13501-1, plus ISO 9001 and CE, on request.
A wide range of solid colors plus wood-grain decors, in matt or satin finish, with custom decor available. Because the color is integral to the laminate it will not fade or chip; a single project is matched from one production batch for consistency.
Panels are made to ≤ 2 mm/2 m flatness. For export they are stacked flat, film-wrapped with corner protectors and crated in plywood boxes for long-haul sea freight, with clear unloading and handling guidance to protect the HPL surface and edges.
Sample/small orders typically ship in 10–15 days and a full container in about 20–25 days from Shanghai. Color, core, thickness and certificates are made to order — send your panel schedule and we will confirm exact MOQ, lead time and FOB/CIF/DDP pricing.
Send us your HPL color, core, thickness, fire rating, ISO/GMP class and panel quantity. Our engineers return a panel schedule, color chart, test reports and a factory-direct quotation — typically within 24 hours.
