System Overview The clean room partition system is an integrated, modular wall solution engineered for high-efficiency industrial cleanroom workshops. By utilizing standardized panels, sealing profiles, and robust structural supports, this system delivers an airtight, thermally insulated barrier designed to maintain strict ISO Class 5–8 cleanliness levels. Its defining architectural feature is the 90° right-angle connection, which provides a simplified, exceptionally solid, and highly economical method for constructing airtight controlled environments. Perfectly suited for electronics, semiconductor, and mechanical component manufacturing. Key operational advantages include: Optimized Installation Efficiency: The 90° corner-to-partition alignment drastically simplifies on-site assembly, reducing labor hours and overall project costs for large-scale facilities. Economical Scalability: Provides a cost-effective, high-performance cleanroom barrier that maintains rigorous environmental control without the premium expense of medical-grade coved-corner systems. Structural Rigidity & Stability: Engineered for superior firmness, ensuring long-term durability in heavy-duty industrial production environments.

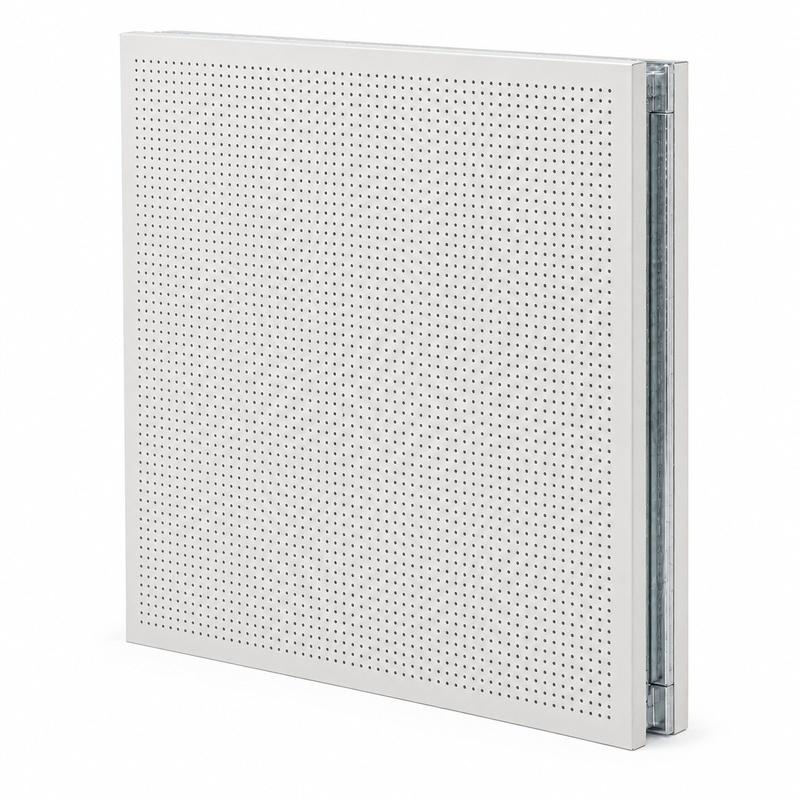

System Overview An Insulated Cleanroom Panel is a perforated, sound-absorbing acoustic wall and ceiling panel — a micro-perforated metal facing over a high-density rock wool core that absorbs noise while it insulates, built to a ≤ 2 mm/2 m flatness tolerance. Key advantages: Absorbs Noise: Perforated face plus mineral core cuts reverberation and lowers room noise levels. Cleanroom-Safe: Acoustic fleece behind the perforations stops fibre release — dust-free and A-grade non-combustible. Insulates Too: The rock wool core adds thermal insulation in a single board.

Video Showcase Overview This modular clean room video highlights Wonclean’s cleanroom design, manufacturing, installation, and project delivery capabilities for controlled environment applications. Through real project footage, engineers and procurement teams can review our cleanroom panels, modular assembly process, FFU ceiling system, and finished ISO-compliant cleanroom environment. Note: For technical specifications, layouts, and customized solutions, please visit our Modular Cleanroom product page. { "@context": "http://schema.org", "@type": "Article", "headline": "Modular Clean Room-video Design, Modular Clean Room-video Manufacturers", "author": { "@type": "Person", "url": "https://www.wonclean.com/", "name": "Wonclean" }, "image": "https://www.wonclean.com/uploadfile/202312/25/c64a2135f40633ec107f44aacea918ed_thumb.jpg", "articleBody": "Modular clean room video showing Wonclean’s cleanroom design, manufacturing, installation, and project delivery capabilities for controlled environment applications. This modular clean room video highlights cleanroom panels, modular assembly process, FFU ceiling system, and finished ISO-compliant cleanroom environment." }

System Overview A cleanroom injection panel is a foam-injected PU/PIR sandwich panel engineered for ultra-low thermal conductivity and fully airtight sealing in cleanroom, cold-storage and HVAC construction. Foamed continuously between two coated galvanized steel facings, this panel forms a seamless, gap-free enclosure that eliminates dust traps and air leakage points. Available in framed PUR construction (aluminum or iron frame) or frameless, fully automated PIR construction, it is the preferred choice for facilities requiring superior insulation, fire safety, and structural airtightness across pharmaceutical, electronics, food, and chemical environments. Key architectural advantages include: Ultra-Low Thermal Conductivity: A λ value of 0.018–0.024 W/(m·K) delivers industry-leading insulation, significantly cutting HVAC energy loads in cleanrooms and cold-storage rooms. Airtight Convex-Groove Joint: A unique convex-groove structure locks panels into a flush, gap-free seal, preventing air leakage and particle ingress. PUR & PIR Fire-Rated Options: Choose B2-grade PUR with aluminum or iron framing, or B1-grade frameless PIR for continuous, fully automated production and enhanced fire resistance.

System Overview A Duct Cleanroom Panel is a pre-insulated board for fabricating clean HVAC air ducts — a smooth metal facing over a rigid insulation core, with a galvanized perimeter for flanged jointing, made to a ≤ 2 mm/2 m flatness tolerance. Key advantages: Built-in Insulation: The core insulates and prevents condensation — no separate lagging needed. Clean, Low-Leakage Airway: Smooth, dust-free interior with airtight, sealed joints. Light & Fast to Build: Lighter than sheet-metal duct and quick to cut, fold and assemble on site.

System Overview A ventilate sandwich panel is a modular cleanroom return air panel engineered to organize airflow direction and support integrated fresh-air circulation without external ductwork. Positioned at the lower part of the workshop, it channels air in the same direction as particle settlement, ensuring dust and contaminants are carried directly to the return air outlet. Built as a modular sandwich structure and available in louver, grate-hole, mesh-plate, orifice-plate, and mushroom-outlet configurations, it integrates with fresh-air circulation and filtration systems to maintain consistent air quality across general cleanroom workshops. Key architectural advantages include: Unified Airflow Direction: Return air outlets are positioned in the lower zone of the workshop so airflow matches the natural settling direction of dust particles, maximizing removal efficiency. Integrated Air Channels: Air distribution pathways are built into the panel structure, eliminating external ductwork, saving overhead space, and reducing static electricity build-up. Cross-Contamination Prevention: High filter efficiency at the return air outlet supports fresh-air circulation and blocks pollutant migration between adjacent cleanroom workshops.

System Overview A PIR Cleanroom Panel bonds two coated-steel facings to a rigid polyisocyanurate (PIR) foam core — a high-insulation, fire-improved cleanroom wall and ceiling panel made to a ≤ 2 mm/2 m flatness tolerance. Key advantages: Insulation + Better Fire: Near-PU thermal performance with an upgraded Class B1 fire rating. Chars, Doesn't Melt: Forms a stable char with low smoke under fire, improving fire integrity. Lightweight & Sealed: Closed-cell core blocks moisture, with a strong facing bond and clean surface.

System Overview A soundproof panel is an acoustic-insulation panel engineered to control noise transmission in industrial and commercial settings. A micro-perforated metal facing sits over a high-density mineral wool or fiberglass core in a sealed, layered construction, allowing the panel to both absorb sound energy (NRC / α) and block its transmission (Rw / STC) in a single build. Available in customizable perforation patterns, thicknesses, and finishes, it dampens both airborne and impact noise while maintaining thermal and structural performance, integrating seamlessly with cleanroom wall and ceiling systems for laboratories, studios, and production areas. Key architectural advantages include: Dual Acoustic Function: The perforated face absorbs sound energy to reduce echo, while the dense, sealed core blocks transmission to the adjacent space. Tunable Core Performance: A non-combustible mineral wool or fiberglass core is matched to your target frequency, with Rw / NRC / STC ratings confirmed per configuration. Sealed, Flanking-Free Construction: An aluminum edge frame and airtight joints prevent leaks that would otherwise short-circuit acoustic performance.

System Overview A Silica Rock Cleanroom Panel bonds two coated-steel facings to a rigid, inorganic silica rock (silicon crystal) core — an A-grade fireproof, moisture-proof and high-strength cleanroom wall and ceiling panel made to a ≤ 2 mm/2 m flatness tolerance. Key advantages: A-Grade Fireproof: Non-combustible mineral core, no droplets or heavy smoke under fire. Moisture-Proof: Water absorption ≤ 5% — does not swell, far better than ordinary rock wool in damp areas. Rigid & Strong: Hard, high-density board with strong impact and compressive resistance.
